Borika Ss223

BORIKA Ss223

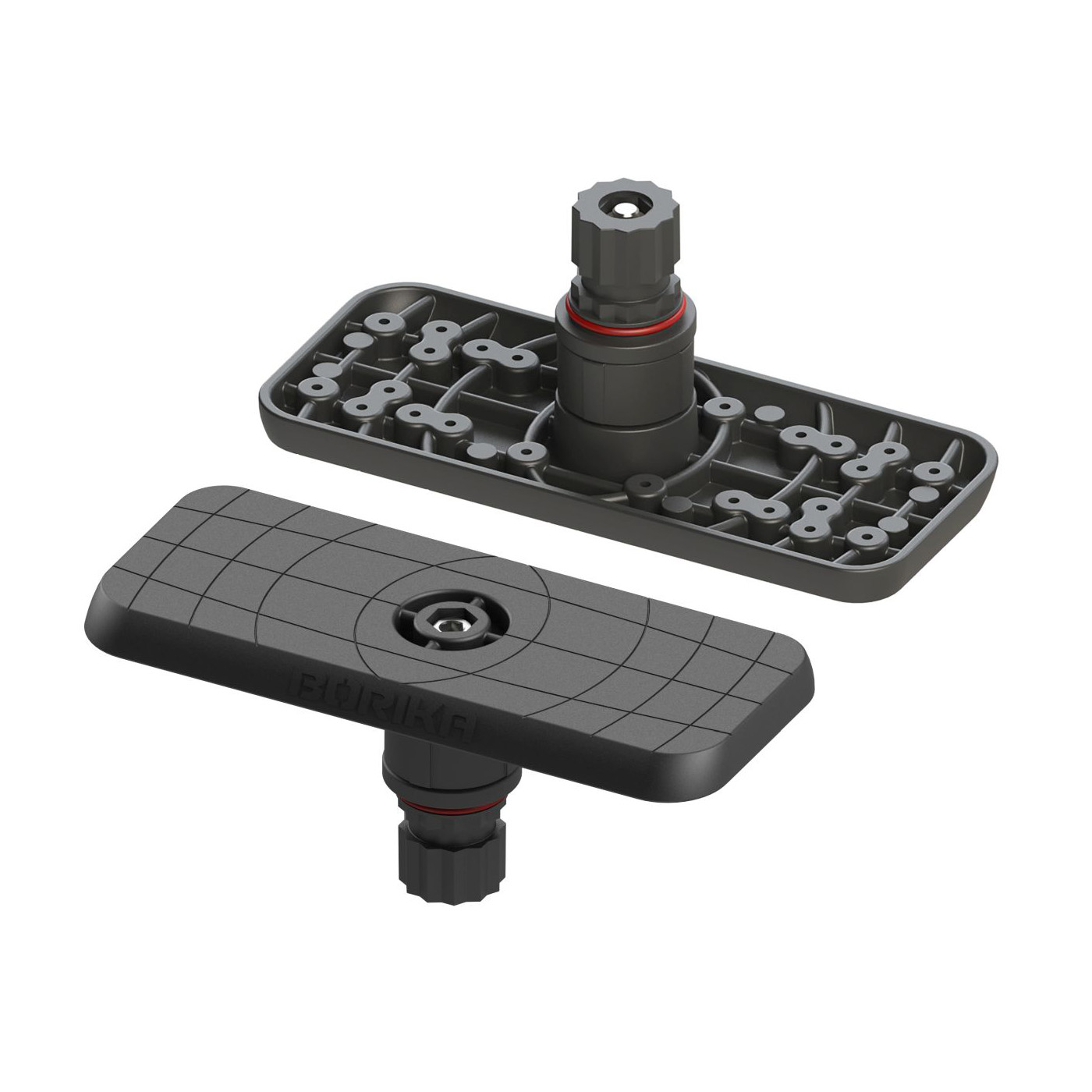

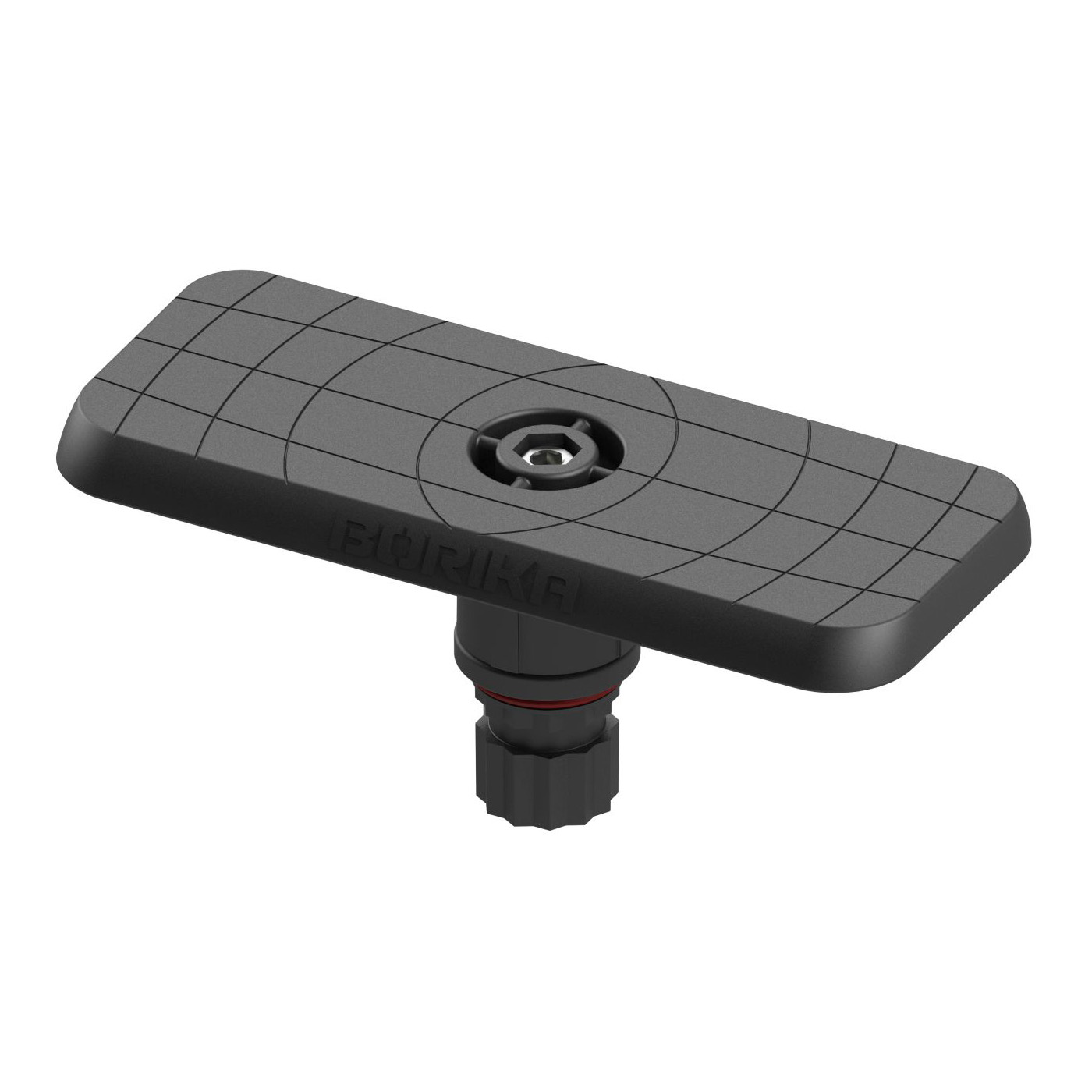

The plate is designed for fixing fish finders and other equipment that have mounting points with the distance between them up to 150 mm. The assembly consists of a 164 х 68 mm plate with a wall 3 mm thick, connected together with a tilt adapter using an M6*60 DIN 912 screw and an M6 DIN 985 self-locking nut. The assembly also includes an adapter washer that allows you to fully rotate the attached equipment without having to remove the adapter from the mount. On the back of the plate, there are marked places for drilling the mounting holes that match the standard mounting points of popular brands. The design comprises a male adapter shaped as a 12 pointed star, which is used for fixing the structure on the vessel. The main parts are made of fiberglass-reinforced polyamide. Fasteners — of A2 (AISI 304) stainless steel.
