Borika SLr220

BORIKA SLr220

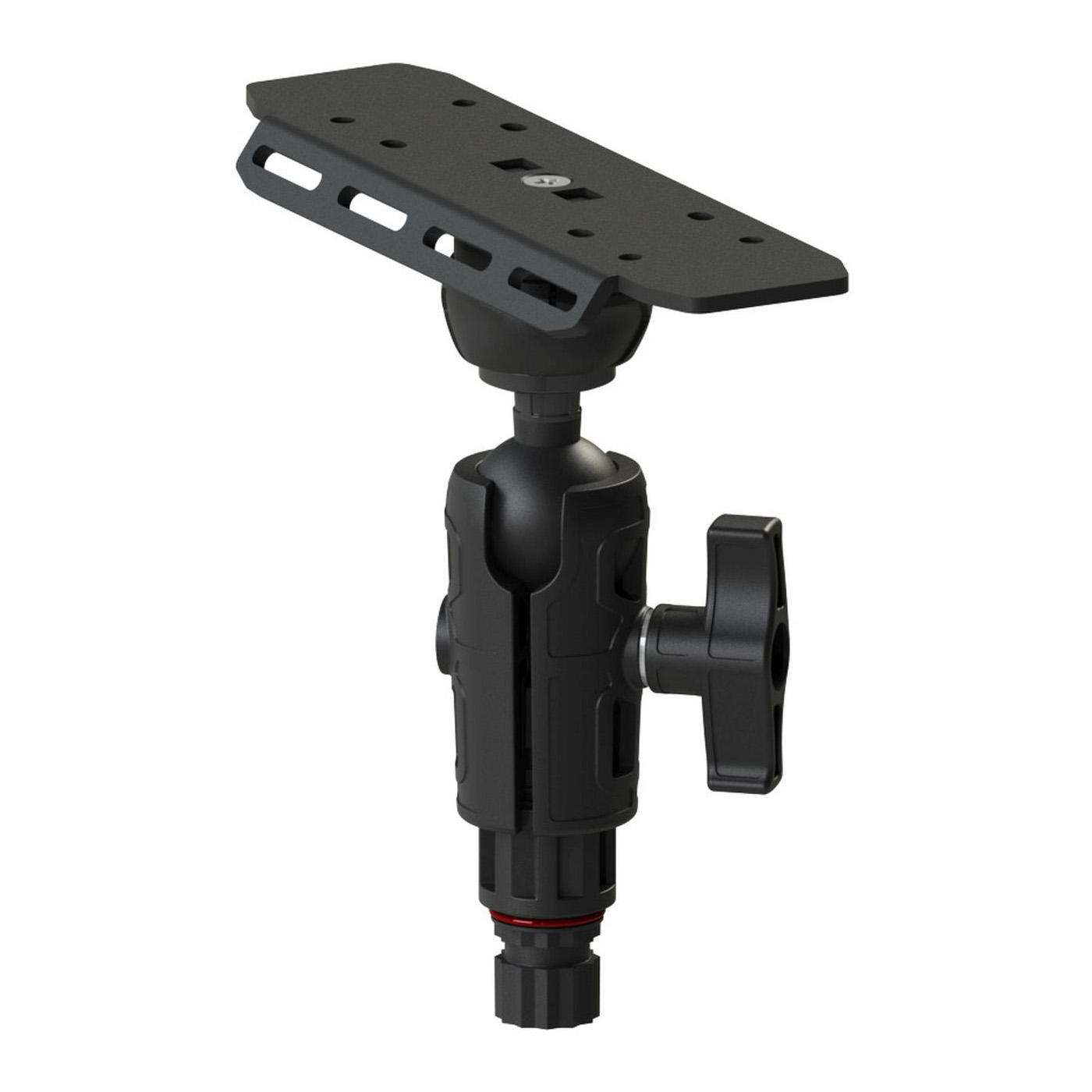

Designed for mounting fish finders with a screen diagonal from 9″ to 12″. The structure consists of a plate (220 x 52 mm), a compact mount with a male adapter shaped as a 12 pointed star, which is screwed on the back side of the platform using an M6*16 DIN 965 screw and an M6 DIN 985 self-locking nut, an Ab038 male adapter with a 1.5″ (38 mm) ball, an Sb038 socket. The compression force of the ball & socket joint can be adjusted by a dihedral knob, a spring, an M8*60 DIN 933 bolt and an M8 DIN 934 nut. At one of the edges of the plate there are 4 oblong holes for hanging MOLLE bags (pouches). On the surface of the plate there are 8 holes for mounting fish finders of popular models. The plate itself is made of aluminium, covered with a black anode layer. The rest of the parts are made of fiberglass reinforced polyamide. Fasteners are made of A2 (AISI 304) stainless steel (except for an M8 DIN 934 brass nut).
