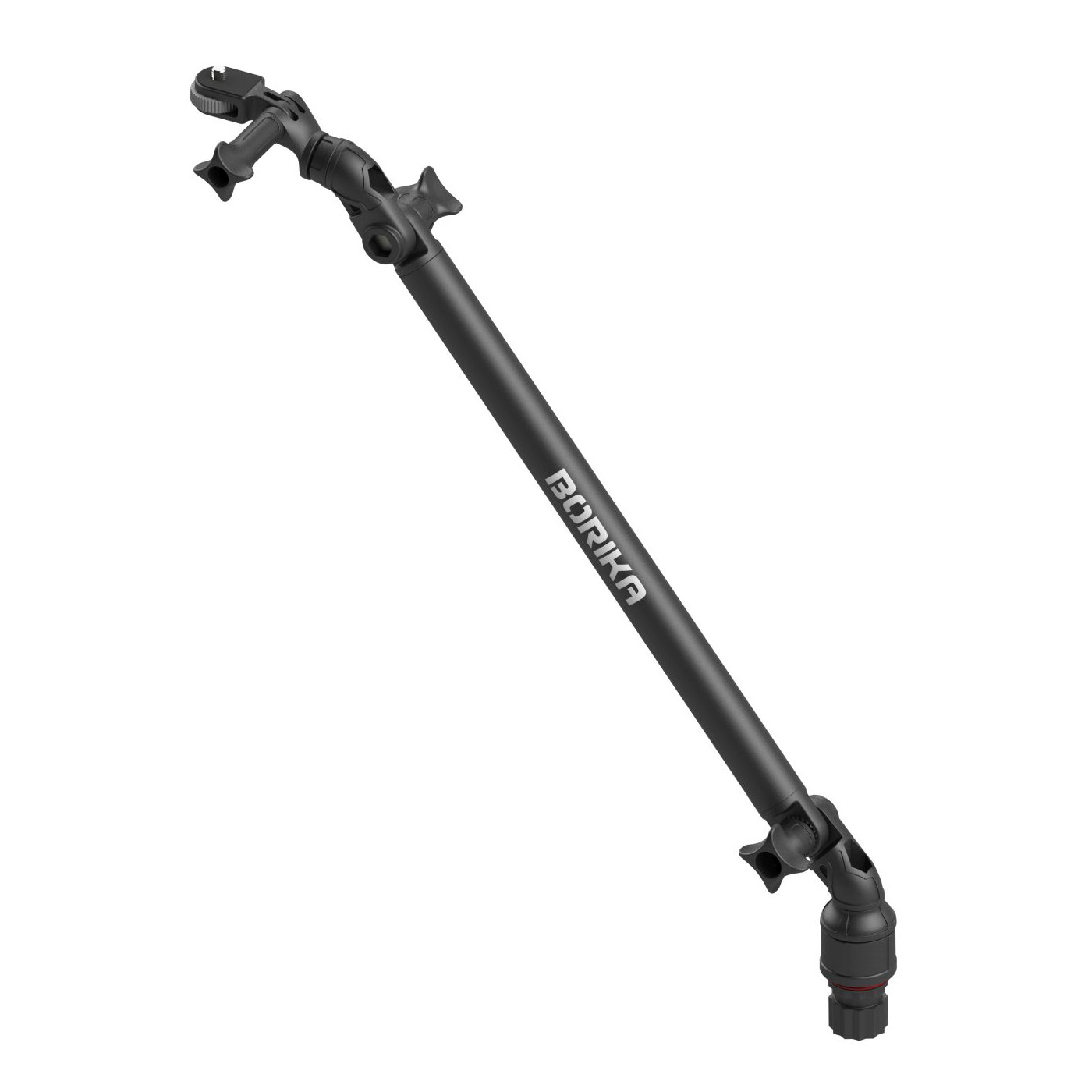

BORIKA Ng400

Designed for mounting an action camera at a distance of 400 mm from the place of installation on the vessel. The assembly includes an Ng002 swivel-tilt camera holder and an Ex400 extender. The design of the holder consists of a bracket with a 1/4” screw thread, a 2-to-3 GoPro mounting connector with an M5*30 DIN 931 bolt, an M5 DIN 934 nut with a square knob, attached to the holder with an M6*25 DIN 963 screw and an M6 DIN 985 nut, a tube (Ø 22, L — 270 mm), two 15° splines tilt joints, connected with two M6*25 DIN 931 screws and M6 DIN 934 nuts, as well as a male adapter shaped as a 12 pointed star. The assembly also includes an M6*60 DIN 912 screw and an M6 DIN 985 self-locking nut. The tilt position of the joints is fixed with two square knobs. The main parts are made of fiberglass-reinforced polyamide. The tube is made of an anodized aluminium with a powder coating. Fasteners — of A2 (AISI 304) stainless steel (except for two M6 DIN 934 brass nuts).
