Borika Ng001

BORIKA Ng001

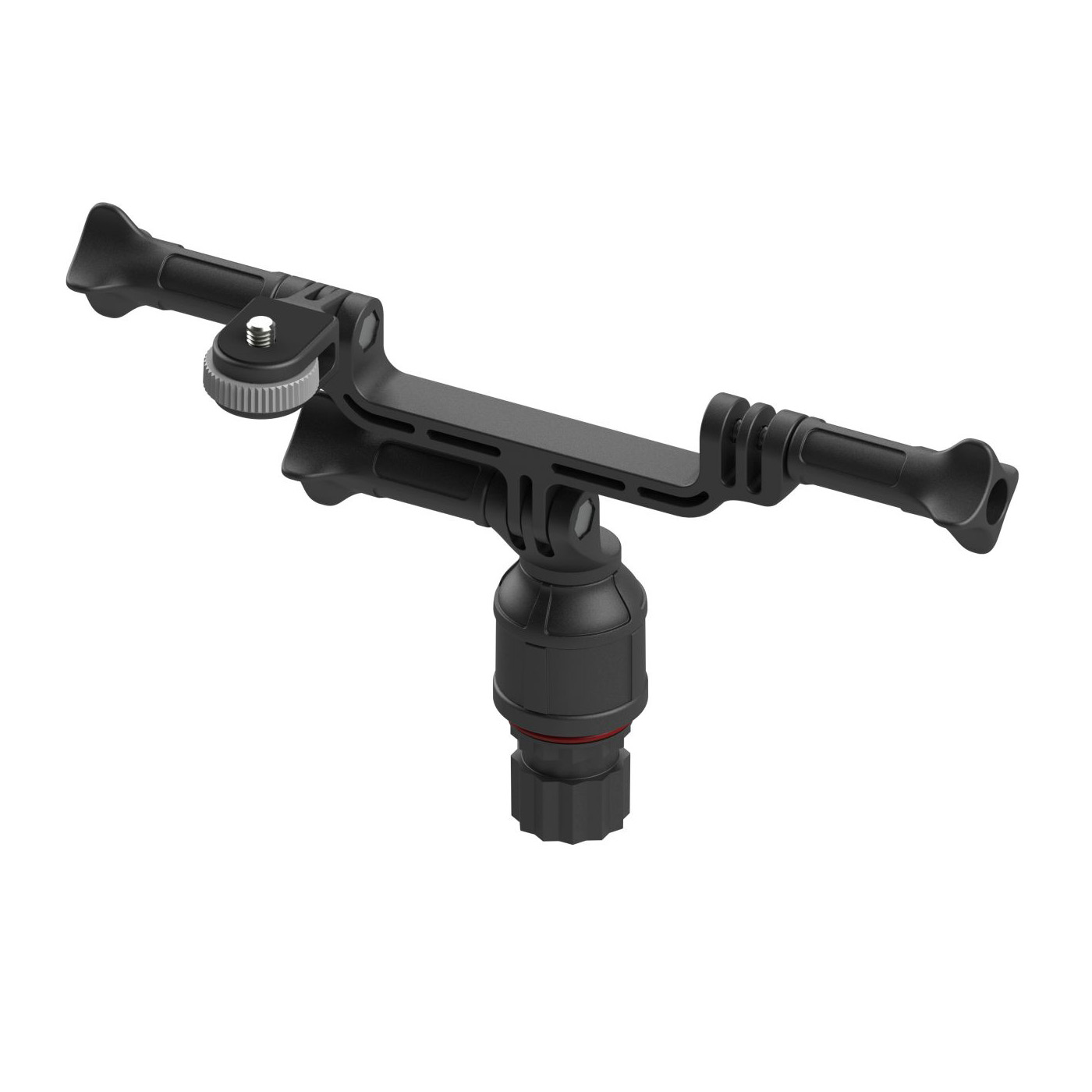

Designed for mounting two action cameras or one action camera with a lighting (a flashlight). The design comprises two 2-to-3 GoPro mounting connectors and a bracket with a 1/4” screw thread that is attached to one of them, which are fixed in another 2-to-3 connector on a male adapter shaped as a 12 pointed star. The holder is 360° rotated without the need to remove the accessory from the mount. Each of the 2-to-3 mounting connectors is equipped with an M5*30 DIN 931 bolt, an M5 DIN 934 nut, the tilt position of the mounted equipment is fixed by three square knobs. The assembly also includes an M6*65 DIN 963 screw and an M6 DIN 985 self-locking nut. All parts are made of fiberglass-reinforced polyamide. Fasteners — of A2 (AISI 304) stainless steel (except for three M5 DIN 934 brass nuts).
