BORIKA FMr132

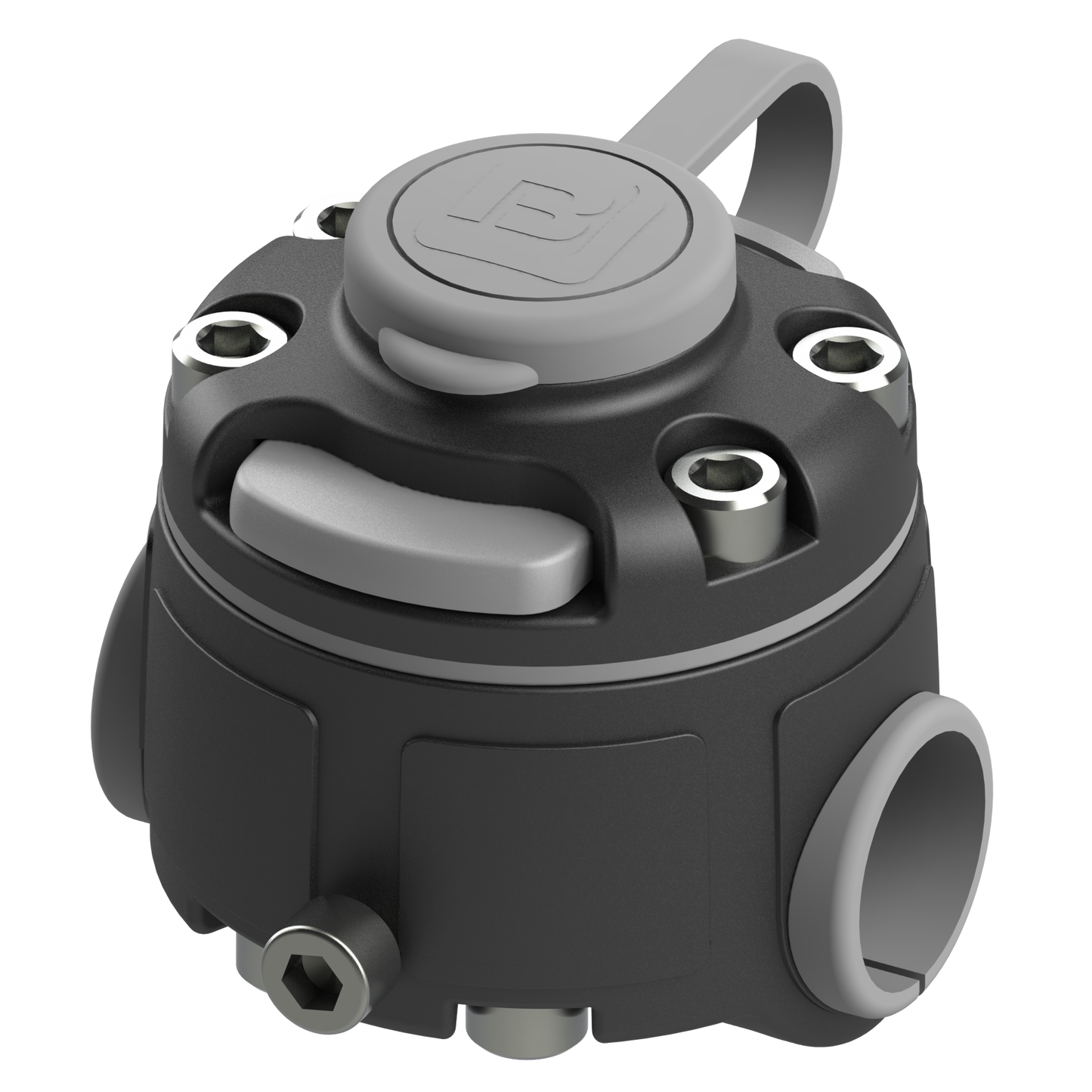

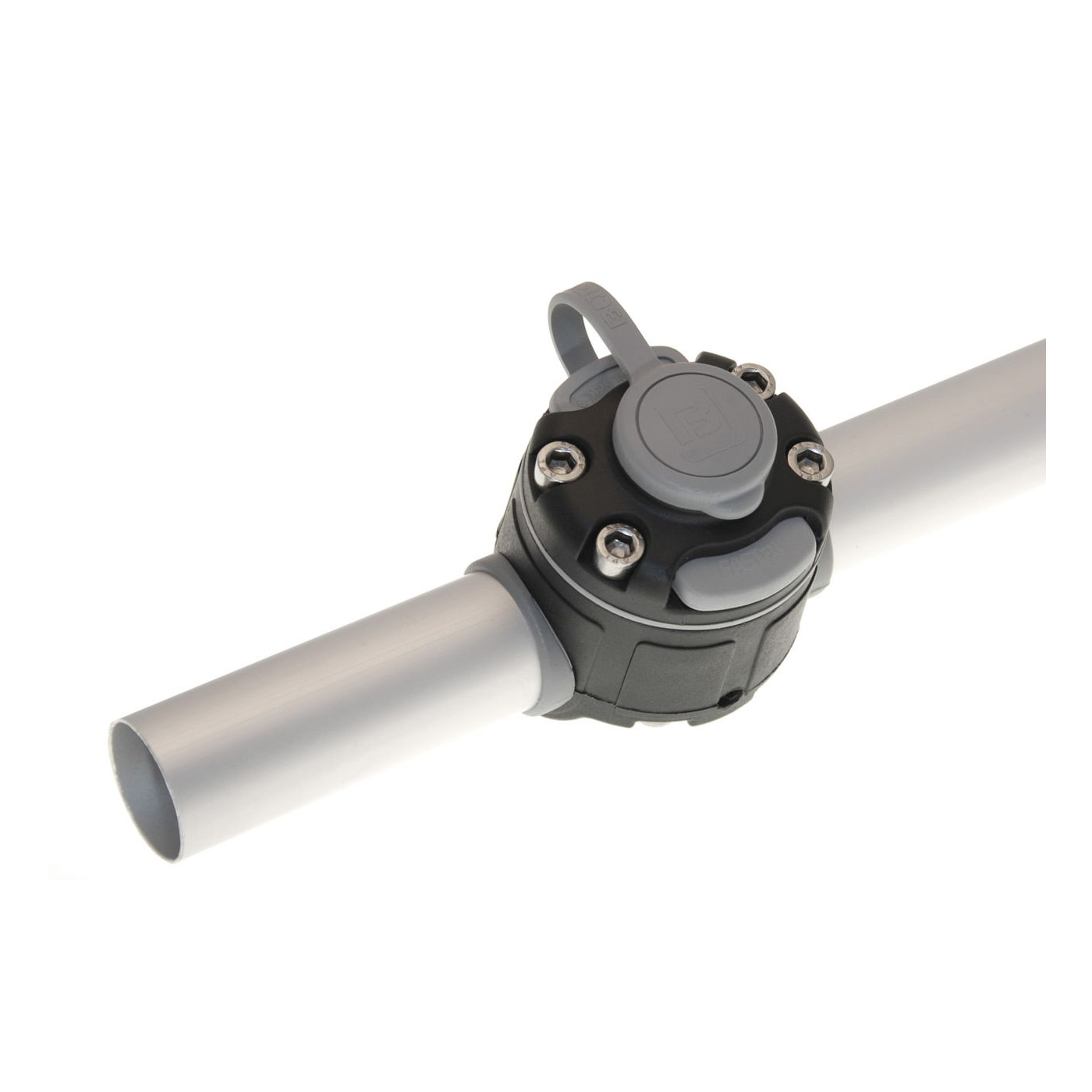

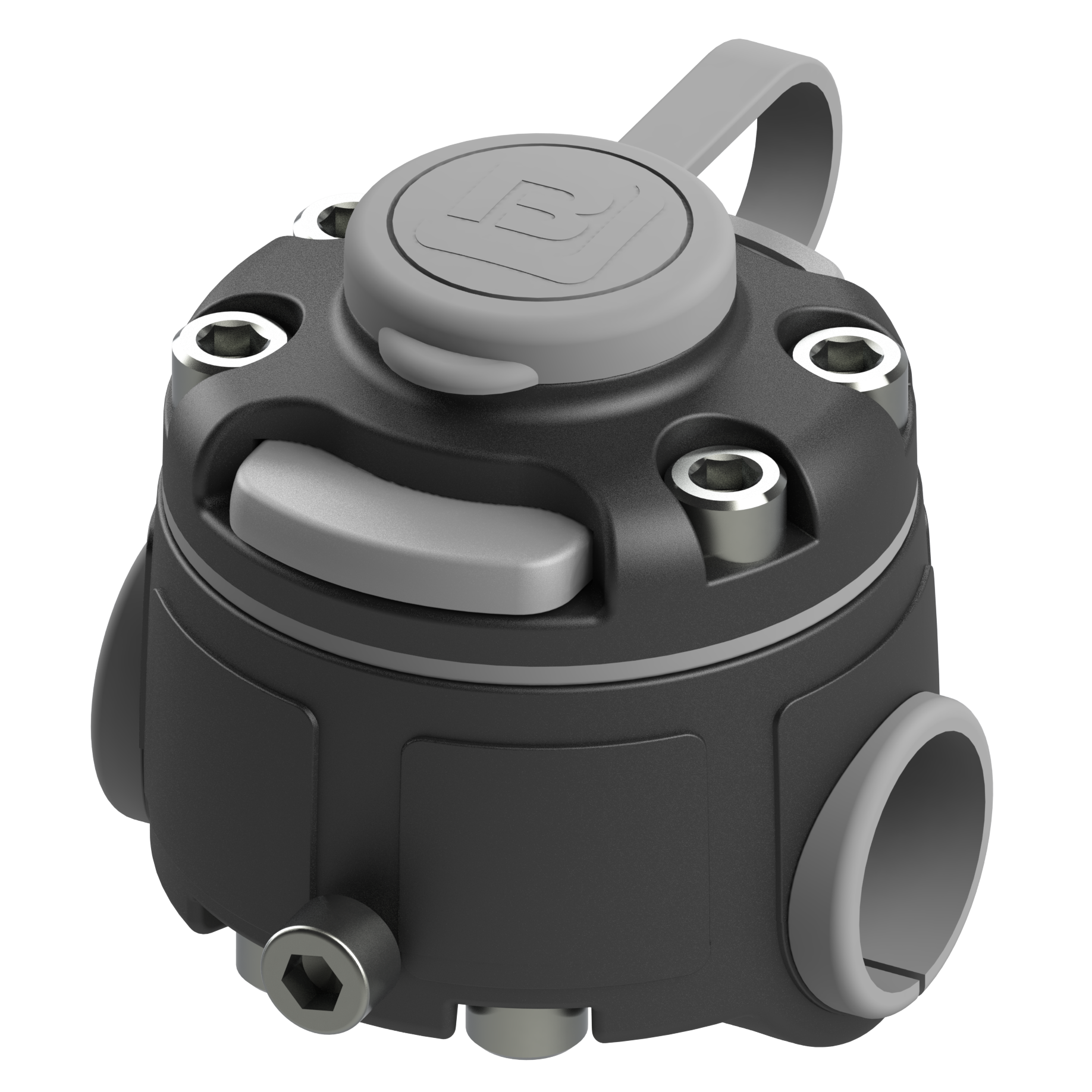

The system is designed for mounting accessories provided with male adapters on tubes of Ø 30 and 32 mm. Consists of an Fs219 mount and a pad, the two parts of which are fastened together with four M6*30 DIN 912 screws and M6 DIN 934 nuts. To fix the pad on the rail immovably it is supplied with two M6*16 DIN 912 side screws and M6 DIN 934 nuts. The mount comprises a female adapter. Is attached to the pad with four M6*20 DIN 912 screws and M6 DIN 934 nuts. The elastic liner is provided for mounting on Ø 30 mm tubes. The adapter of the fixed accessory is inserted all the way into the mount, the retainer of which is in the open position (UNLOCK), then the retainer is moved to the LOCK position, clamping 7 out of 12 adapter teeth. The package includes a hex wrench. The main parts are made of fiberglass-reinforced polyamide. The protective plug and the liner are made of PVC. Fasteners — of A2 (AISI 304) stainless steel (except for four M6 DIN 934 brass nuts).
