Borika FMp225

BORIKA FMp225

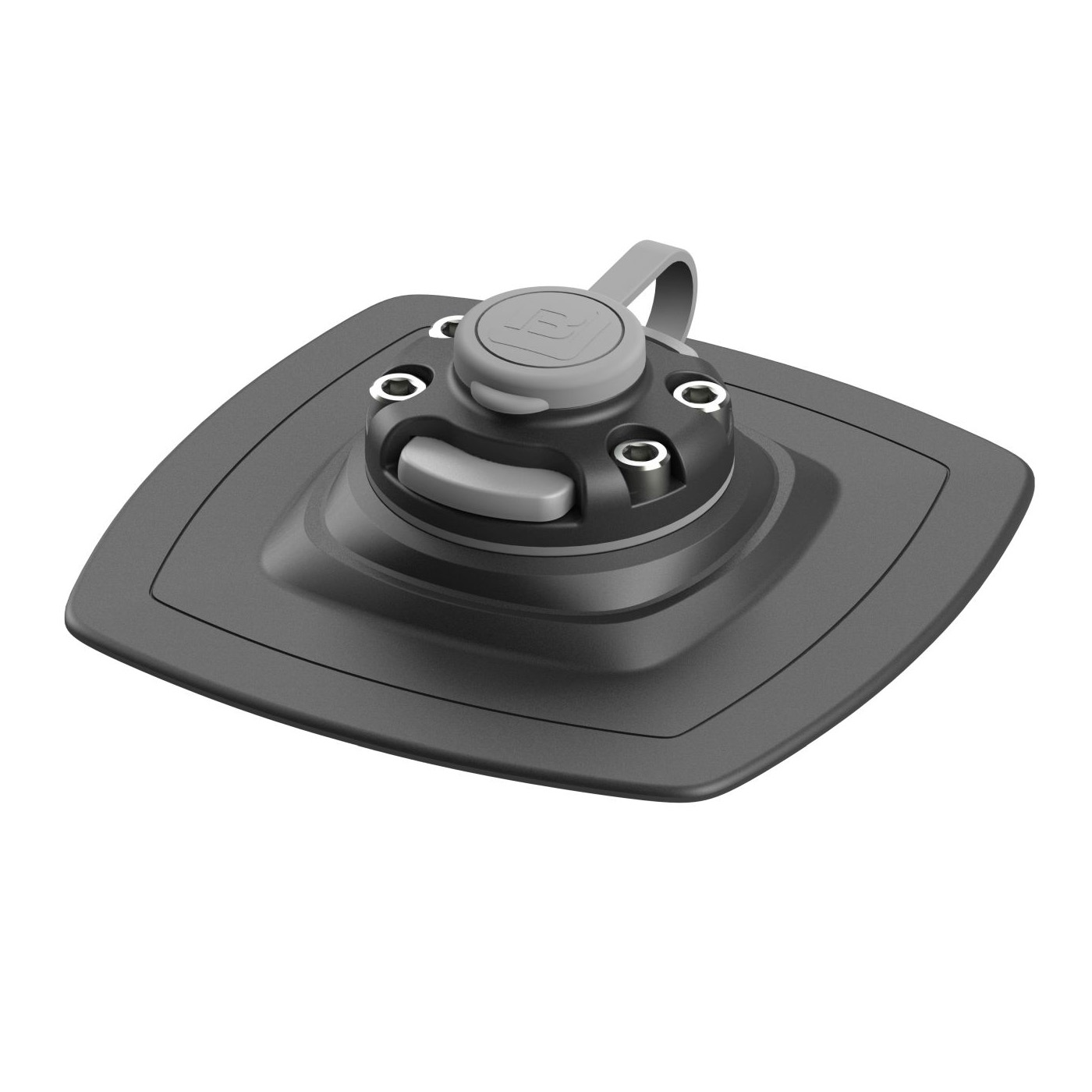

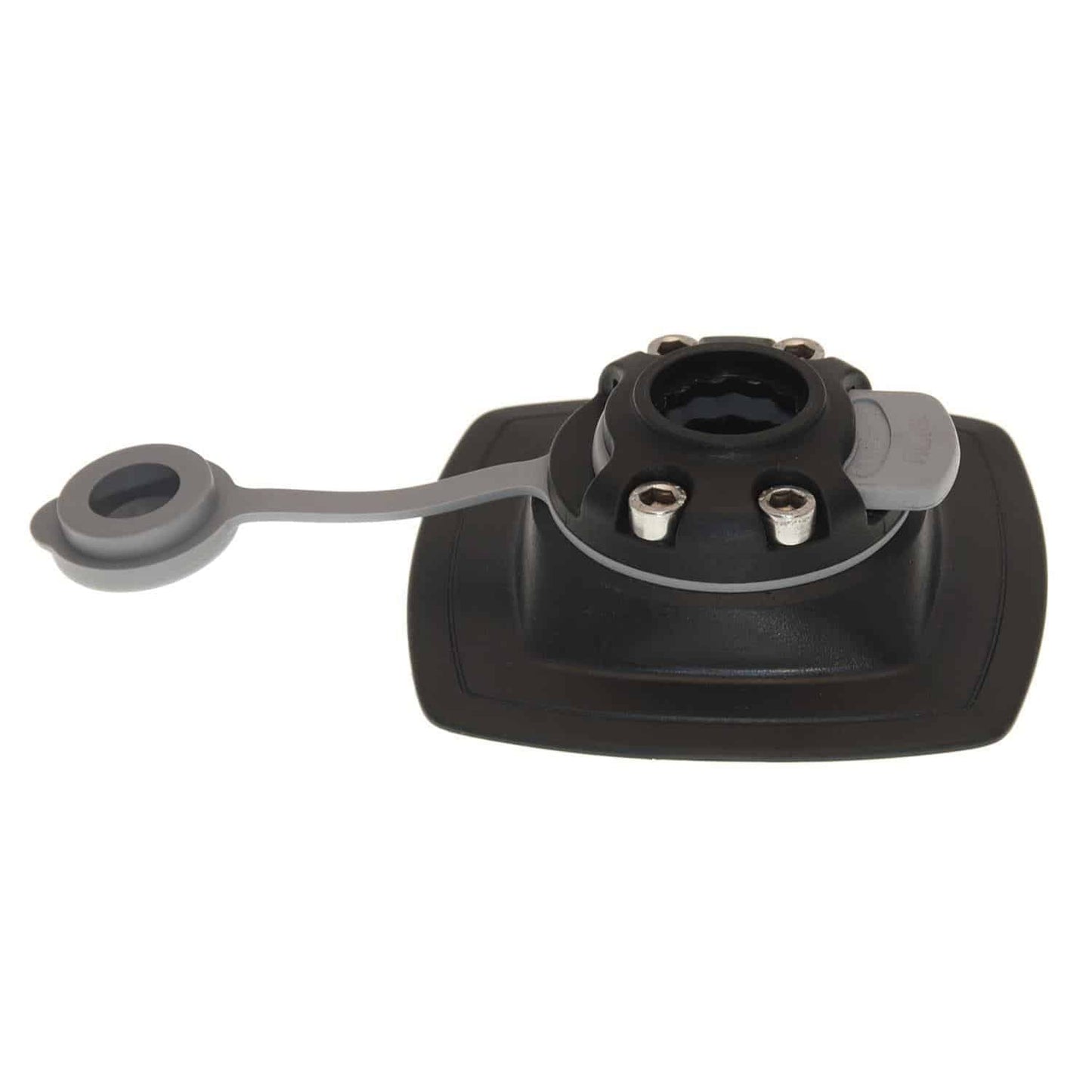

The system is designed for mounting on board of PVC inflatables the accessories with male adapters shaped as a 12 pointed star. It consists of an Fs219 mount and a pad (140 x 140 mm) reinforced with a polyamide washer. The mount comprises a female adapter. Fastened to the pad with four M6*20 DIN 912 screws and M6 DIN 934 nuts. The system is glued using two-component polyurethane adhesive (not included). The adapter of the fixed accessory is inserted all the way into the mount, the retainer of which is in the open position (UNLOCK), then the retainer is moved to the LOCK position, clamping 7 out of 12 adapter teeth. The mount design provides a protective plug. The main parts are made of fiberglass-reinforced polyamide, the pad is covered with PVC. The protective plug is made of PVC. Fasteners — of A2 (AISI 304) stainless steel.
